A Multi-index RAG pipeline

Lesson 408 min

When you have both semantic search (vector embeddings) and lexical search (BM25) working independently, the next step is combining them into a unified search pipeline. This hybrid approach leverages the strengths of both methods to deliver more accurate results.

The user question about INC-2023-Q4-011 runs through semantic and lexical search in parallel, then their results merge.

Creating a Unified Interface

Both search implementations share nearly identical APIs - they both have add_document() and search() methods that work the same way. This consistency makes it straightforward to wrap them in a single Retriever class.

VectorIndex and BM25Index each have add_document, which adds a text chunk, and "search", which returns chunks and scores.

The Retriever acts as a coordinator that forwards user queries to both indexes, collects their results, and merges them into a single ranked list.

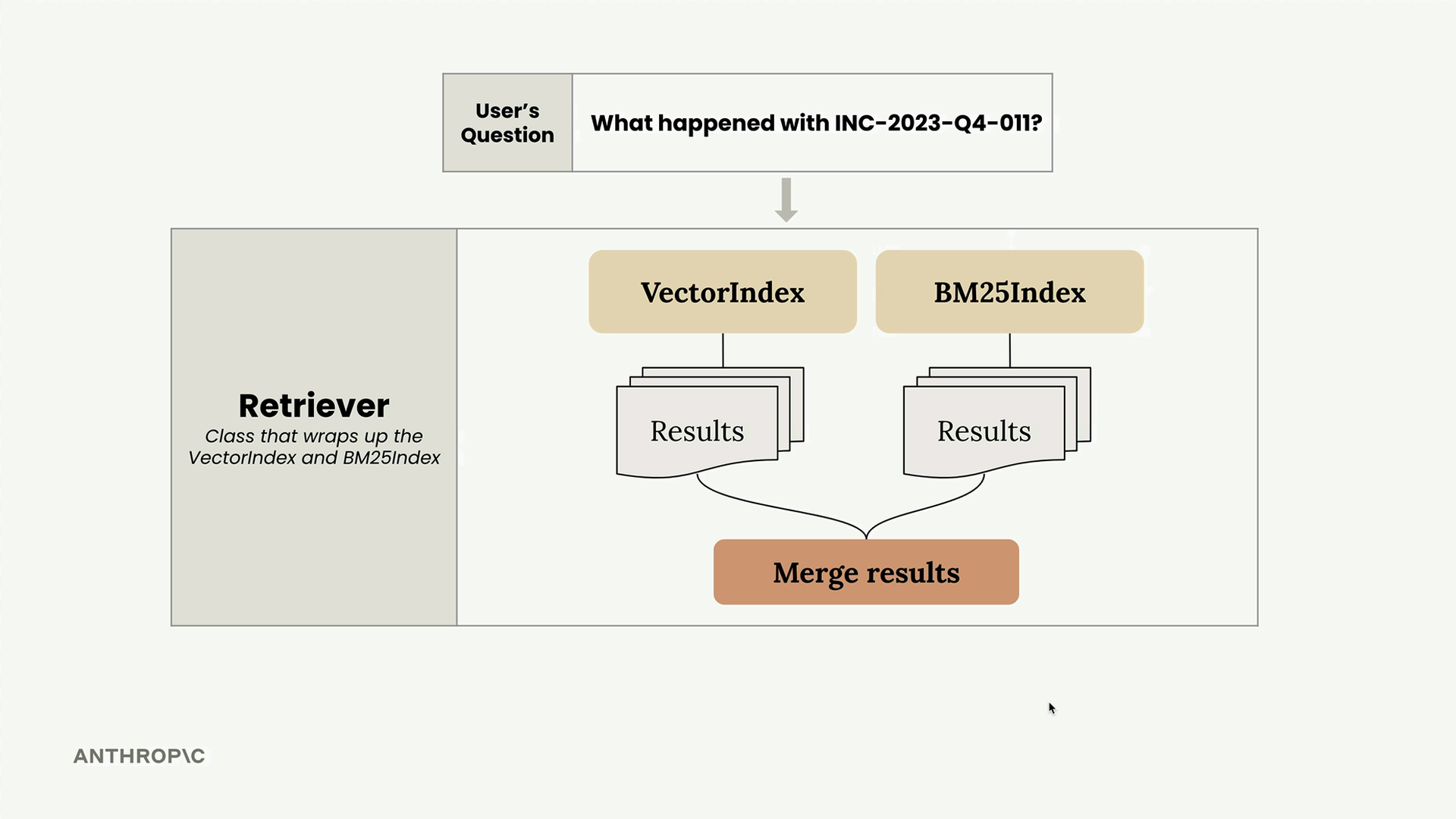

Diagram of the Retriever: a user question goes to both the VectorIndex and the BM25Index, whose results are merged.

Reciprocal Rank Fusion

The challenge is merging results from different search methods that use different scoring systems. Vector search returns cosine similarity scores, while BM25 returns relevance scores - you can't simply combine these numbers directly.

Instead, we use a technique called Reciprocal Rank Fusion (RRF). This method focuses on the rank position of results rather than their raw scores.

VectorIndex and BM25Index result tables for the example below, each with a score column, such as 0.234 and 0.184 at rank 1.

Here's how it works with an example. Say your vector search returns sections 2, 7, and 6 in that order, while BM25 returns sections 6, 2, and 7. To merge these:

The ranked results from VectorIndex and BM25Index combined into one table of each text chunk's rank from both indexes.

First, create a table showing each text chunk and its rank from both search methods:

  • Section 2: Rank 1 from vector, rank 2 from BM25
  • Section 7: Rank 2 from vector, rank 3 from BM25
  • Section 6: Rank 3 from vector, rank 1 from BM25

Table of each section's ranks from vector and BM25 with its RRF score, noting a higher score means a more relevant chunk.

Then apply the RRF formula to calculate a combined score for each chunk:

RRF_score(d) = Σ(1 / (k + rank_i(d)))

Where k is a constant (typically 60, but we'll use 1 for clearer results) and rank_i(d) is the rank of document d in the i-th search result.

Reciprocal Rank Fusion formula and a table of three sections' vector and BM25 ranks and score, where higher is more relevant.

For our example:

  • Section 2: 1.0/(1+1) + 1.0/(1+2) = 0.833
  • Section 7: 1.0/(1+2) + 1.0/(1+3) = 0.583
  • Section 6: 1.0/(1+3) + 1.0/(1+1) = 0.75

Table of each text chunk's rank from vector, rank from BM25, score and final rank, where a higher score is more relevant.

The final ranking becomes: Section 2 (0.833), Section 6 (0.75), Section 7 (0.583). This makes intuitive sense - Section 2 performed well in both searches, Section 6 had mixed results, and Section 7 ranked lower overall.

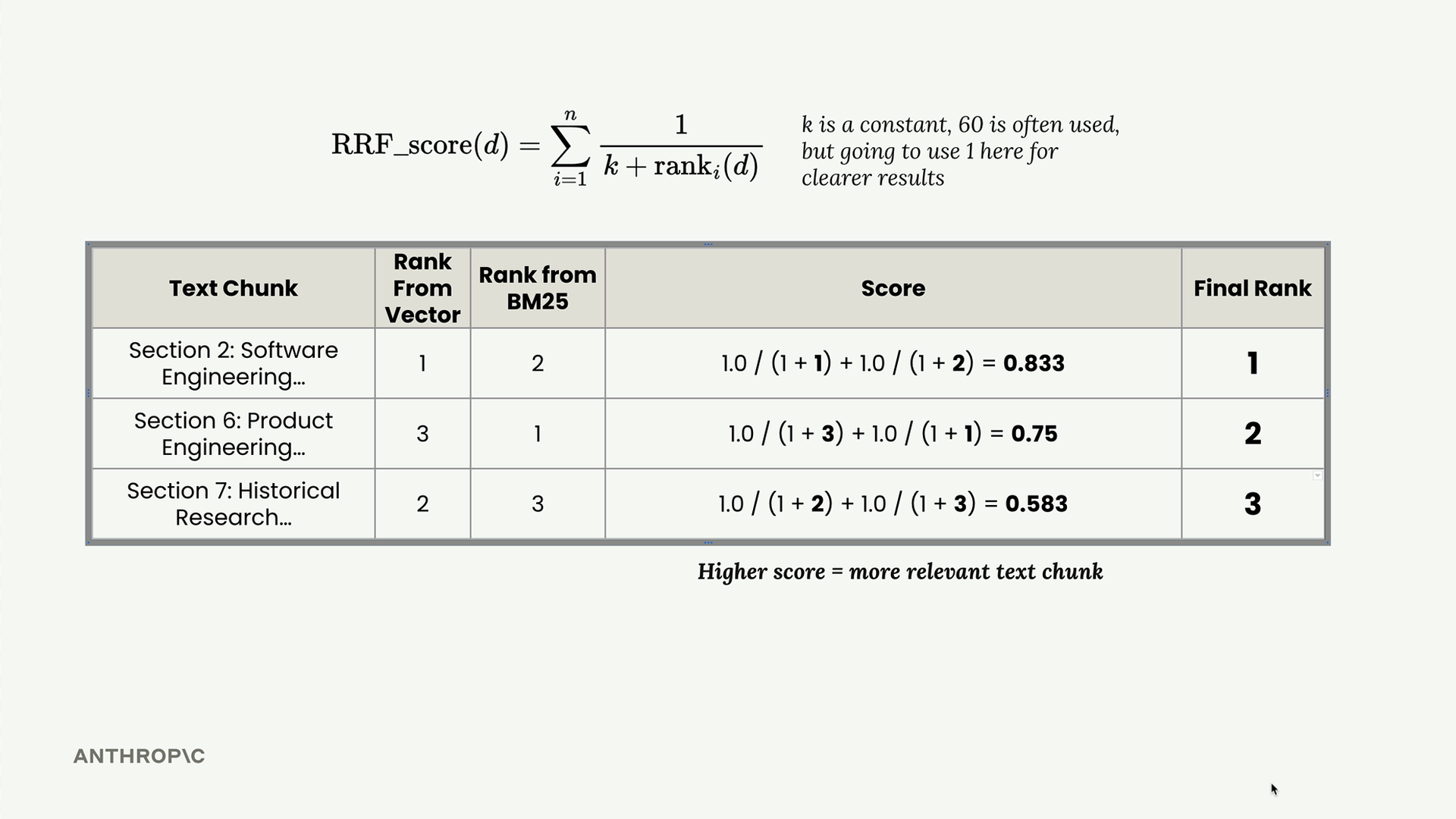

The RRF table described above, adding a "Final Rank" column and the note that higher score means more relevant text chunk.

Implementation

The Retriever class implementation is straightforward:

Retriever class in a notebook that raises errors for no indexes, non-string query text, non-positive k and negative k_rrf.

python
class Retriever:
    def __init__(self, *indexes):
        self._indexes = list(indexes)

    def add_document(self, document):
        for index in self._indexes:
            index.add_document(document)

    def search(self, query_text, k=1, k_rrf=60):
        # Get results from all indexes
        all_results = [index.search(query_text, k) for index in self._indexes]

        # Apply reciprocal rank fusion
        # ... merge logic here ...

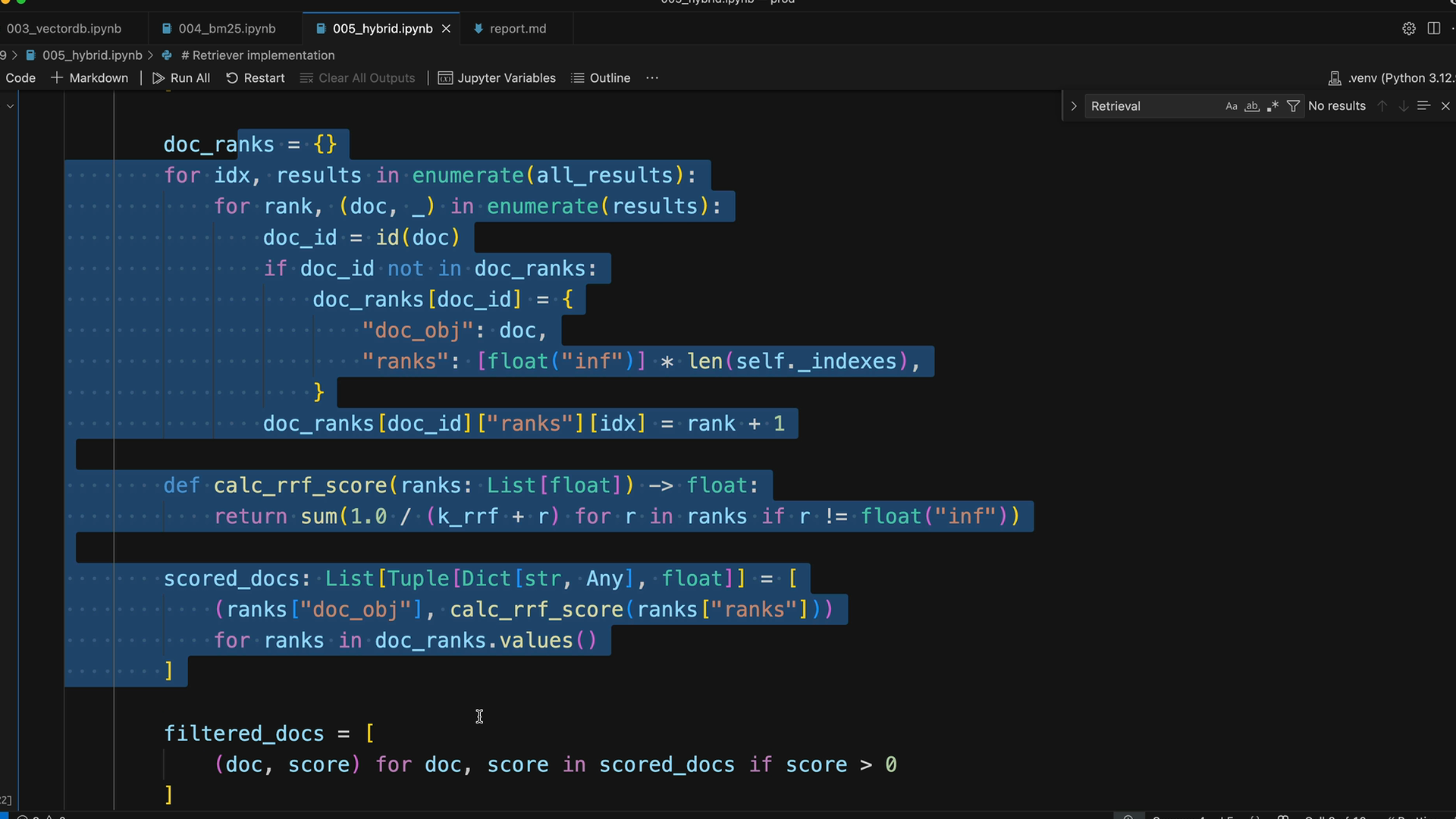

The merge logic left out of the code above: it builds doc_ranks, defines calc_rrf_score, then keeps docs scoring above 0.

The merge logic tracks document ranks across all search results, calculates RRF scores, and returns the top-k documents sorted by their combined scores.

Testing the Hybrid Approach

When testing with the query "what happened with INC-2023-Q4-011?", the hybrid approach delivers much better results than vector search alone:

Vector search alone, returning Section 10: Cybersecurity Analysis at distance 0.634, Section 3: Financial Analysis at 0.809.

The results now correctly prioritize:

  1. Section 10: Cybersecurity Analysis (the actual incident report)
  2. Section 2: Software Engineering (relevant context)
  3. Section 5: Legal Developments (less relevant but still related)

Notebook output: Section 10 Cybersecurity Analysis scores about 0.0325, Section 2 about 0.0320, Section 5 about 0.0308.

Benefits of the Hybrid Architecture

This design offers several advantages:

  • Modular design: Each search index is implemented independently with the same API
  • Easy extensibility: You can add new search methods by implementing the same search() and add_document() interface
  • Better accuracy: Combines semantic understanding with exact keyword matching
  • Flexible fusion: The RRF algorithm works regardless of how many search indexes you combine

Retriever sends the question to VectorIndex, BM25Index and a third box labeled ???Index, then merges the two result sets.

The consistent API means you could easily add a third search index - perhaps one that specializes in named entity recognition or handles specific document types - and the Retriever would automatically incorporate its results into the final ranking.

Diagram of the Retriever: a user question goes to both the VectorIndex and the BM25Index, whose results are merged.

This hybrid search foundation provides significantly more robust retrieval than either method alone, setting up your RAG pipeline for better performance across a wider range of query types.
