After breaking a document into chunks, the next step in a RAG pipeline is finding which chunks are most relevant to a user's question. This is essentially a search problem - you need to look through all your text chunks and identify the ones that relate to what the user is asking about.

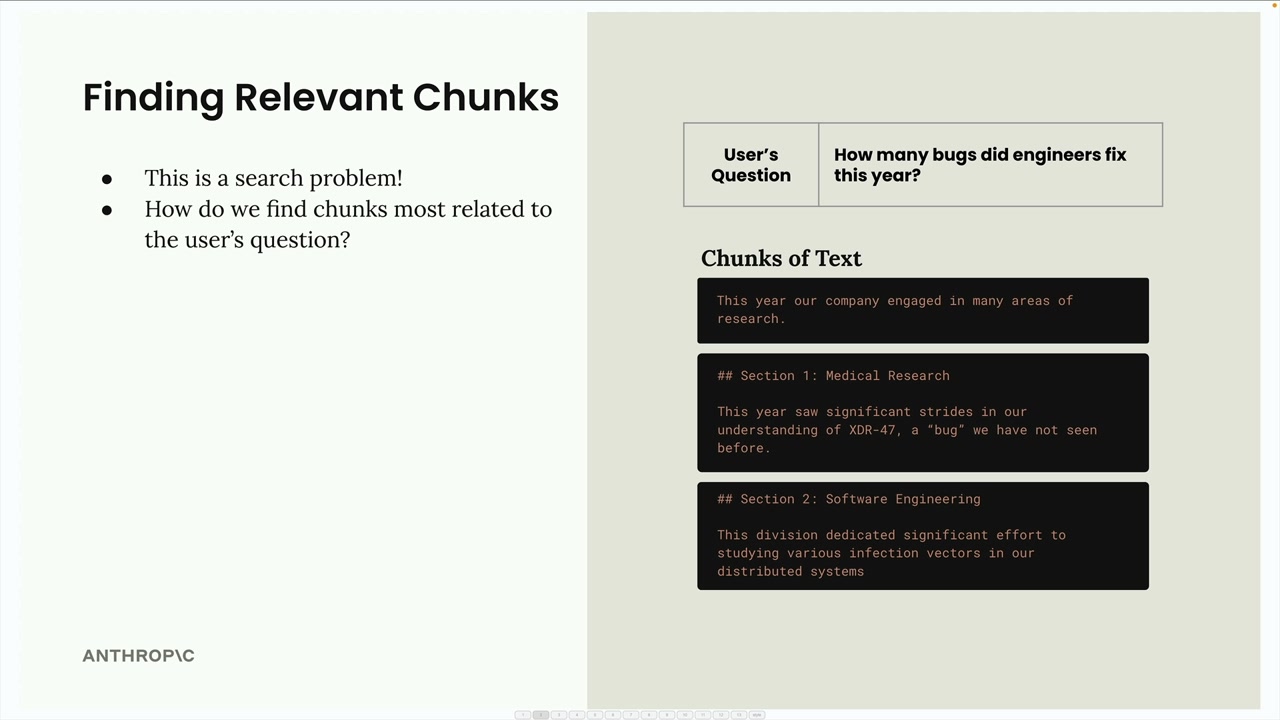

User question "How many bugs did engineers fix this year?" and three text chunks, one calling XDR-47 a "bug".

The most common approach for finding relevant chunks is semantic search. Unlike keyword-based search that looks for exact word matches, semantic search uses text embeddings to understand the meaning and context of both the user's question and each text chunk.

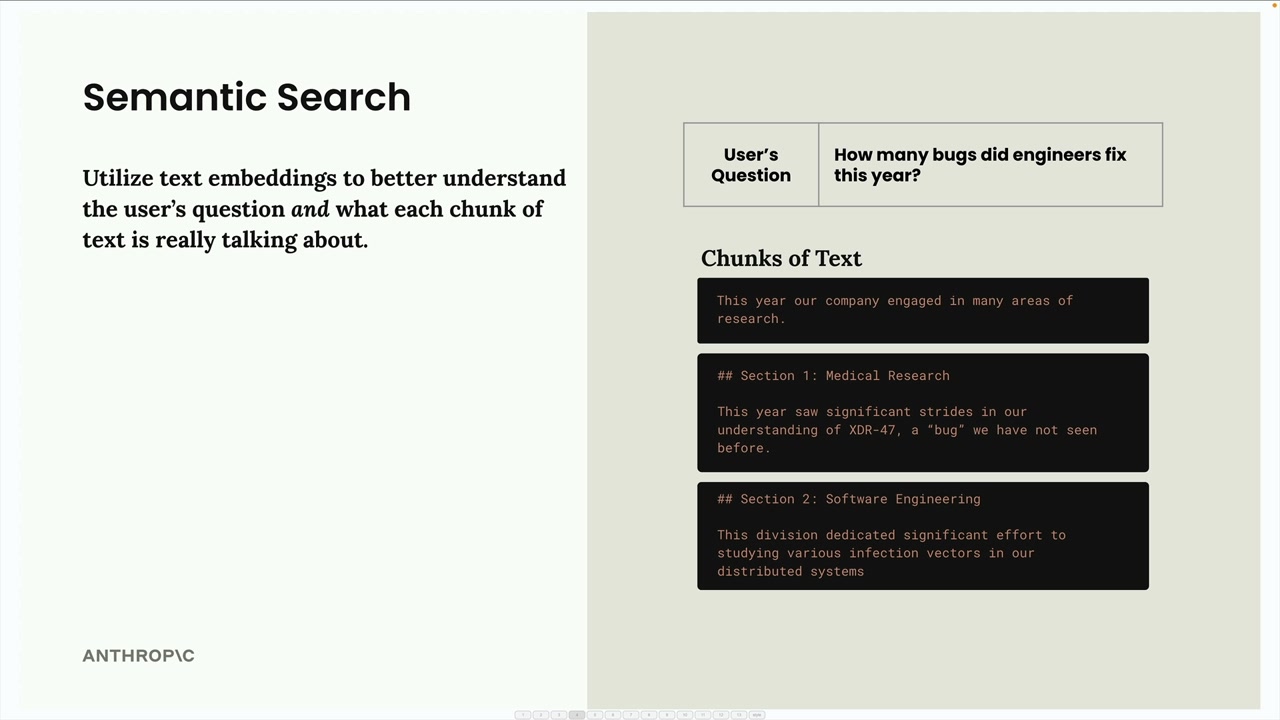

"How many bugs did engineers fix this year?" above a medical chunk that says "bug" and a software one on infection vectors.

Text Embeddings

A text embedding is a numerical representation of the meaning contained in some text. Think of it as converting words and sentences into a format that computers can work with mathematically.

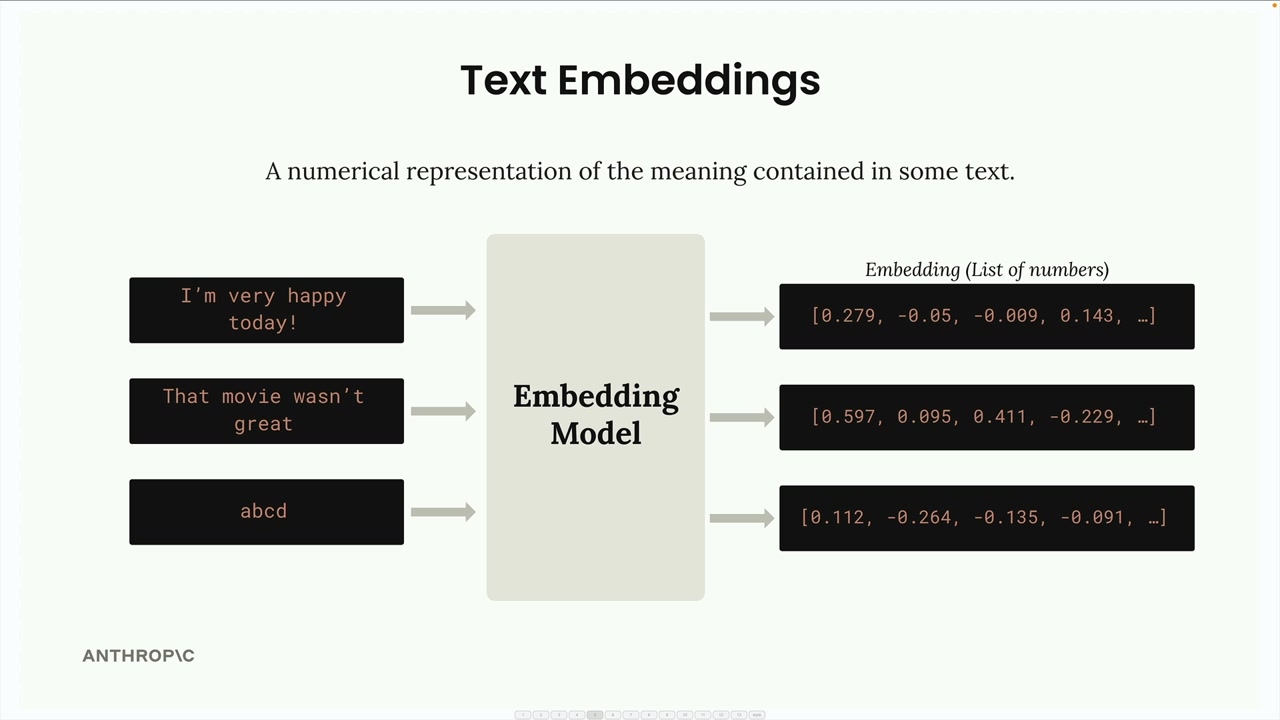

"I'm very happy today!", "That movie wasn't great" and "abcd", each becoming a list of numbers such as 0.279, -0.05.

Here's how the process works:

  • You feed text into an embedding model
  • The model outputs a long list of numbers (the embedding)
  • Each number ranges from -1 to +1
  • These numbers represent different qualities or features of the input text

Understanding the Numbers

Each number in an embedding is essentially a "score" for some quality of the input text. However, here's the important caveat: we don't know precisely what each number represents.

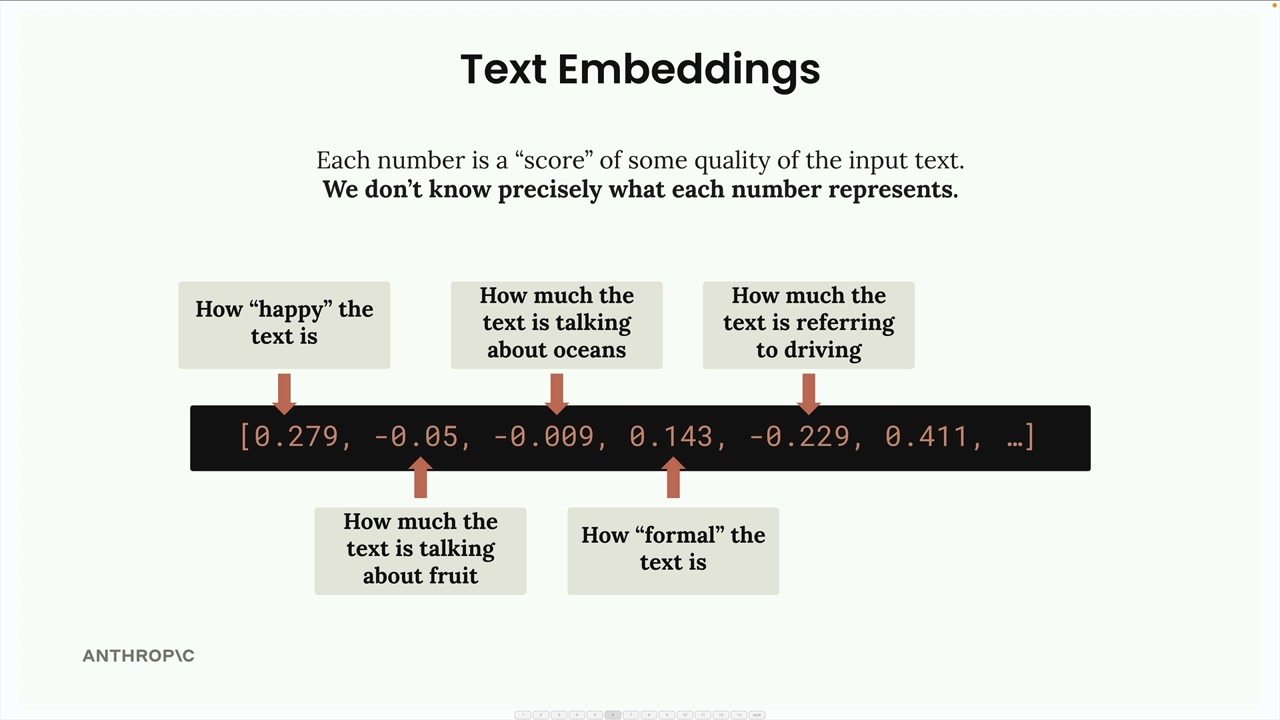

Arrows label single numbers in the embedding as scores such as how "formal" the text is and how much it talks about fruit.

While it's helpful to imagine that one number might represent "how happy the text is" or "how much the text talks about oceans," these are just conceptual examples. The actual meaning of each dimension is learned by the model during training and isn't directly interpretable by humans.

VoyageAI for Embeddings

Since Anthropic doesn't currently provide embedding generation, the recommended provider is VoyageAI. You'll need to:

  • Sign up for a separate VoyageAI account
  • Get an API key (free to get started)
  • Add the key to your environment variables

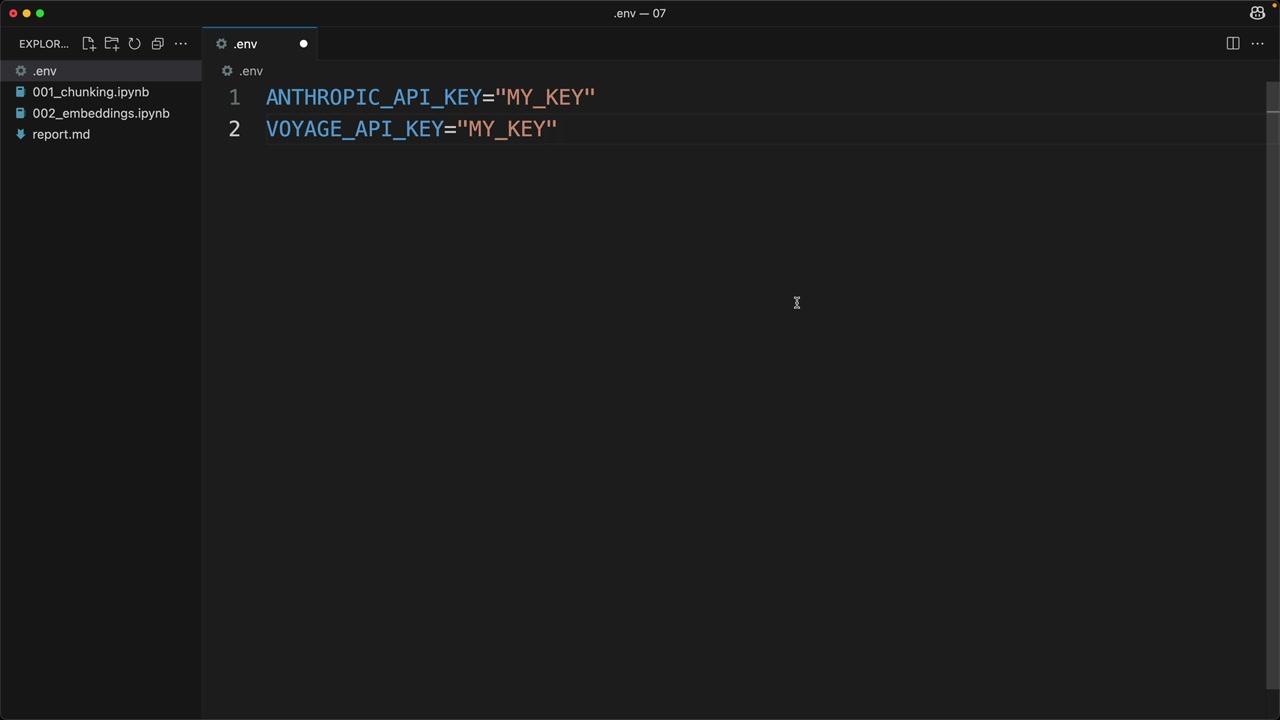

The .env file open in an editor with two lines, ANTHROPIC_API_KEY and VOYAGE_API_KEY, each set to "MY_KEY".

In your .env file, add:

bash
VOYAGE_API_KEY="your_key_here"

Implementation

First, install the VoyageAI library:

bash
%pip install voyageai

Then set up the client and create a function to generate embeddings:

python
from dotenv import load_dotenv
import voyageai

load_dotenv()
client = voyageai.Client()

def generate_embedding(text, model="voyage-3-large", input_type="query"):
    result = client.embed([text], model=model, input_type=input_type)
    return result.embeddings[0]

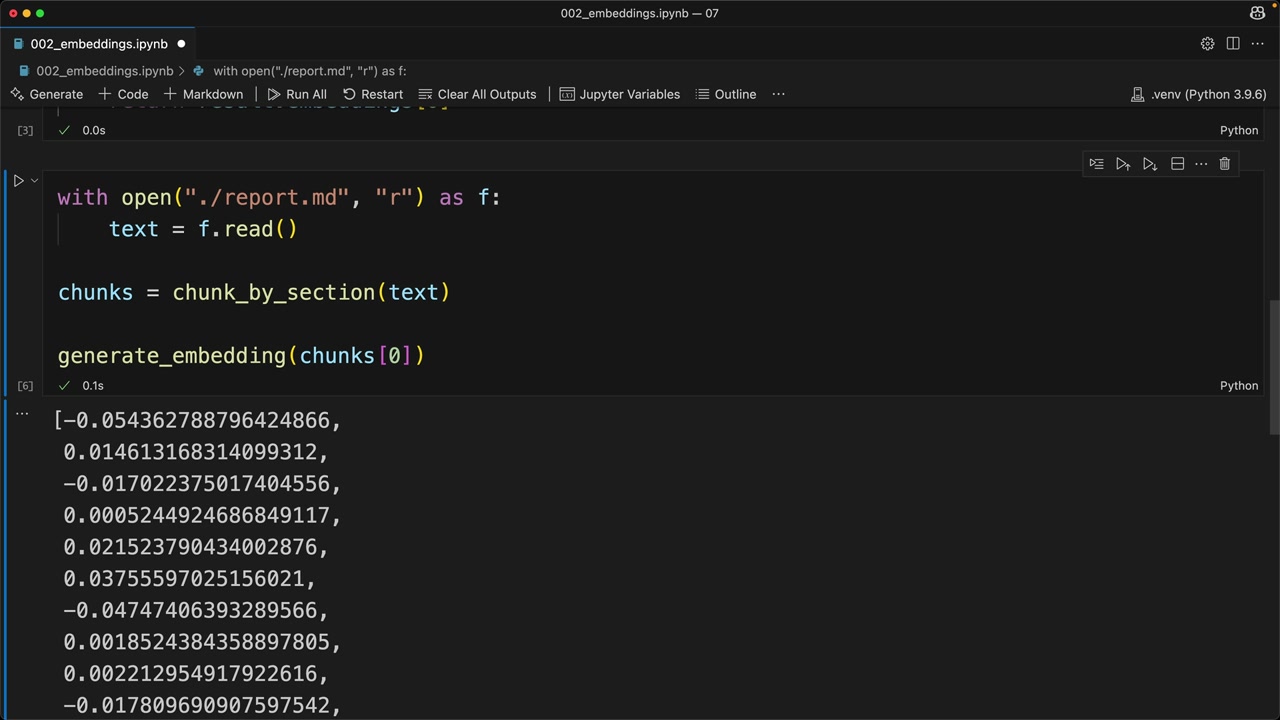

Notebook cell that reads report.md, chunks it by section and embeds the first chunk, output starting -0.054, 0.015.

When you run this function on a text chunk, you'll get back a list of floating-point numbers representing the embedding. The process is quick and straightforward - the real challenge is understanding how to use these embeddings effectively in your RAG pipeline for finding the most relevant content.

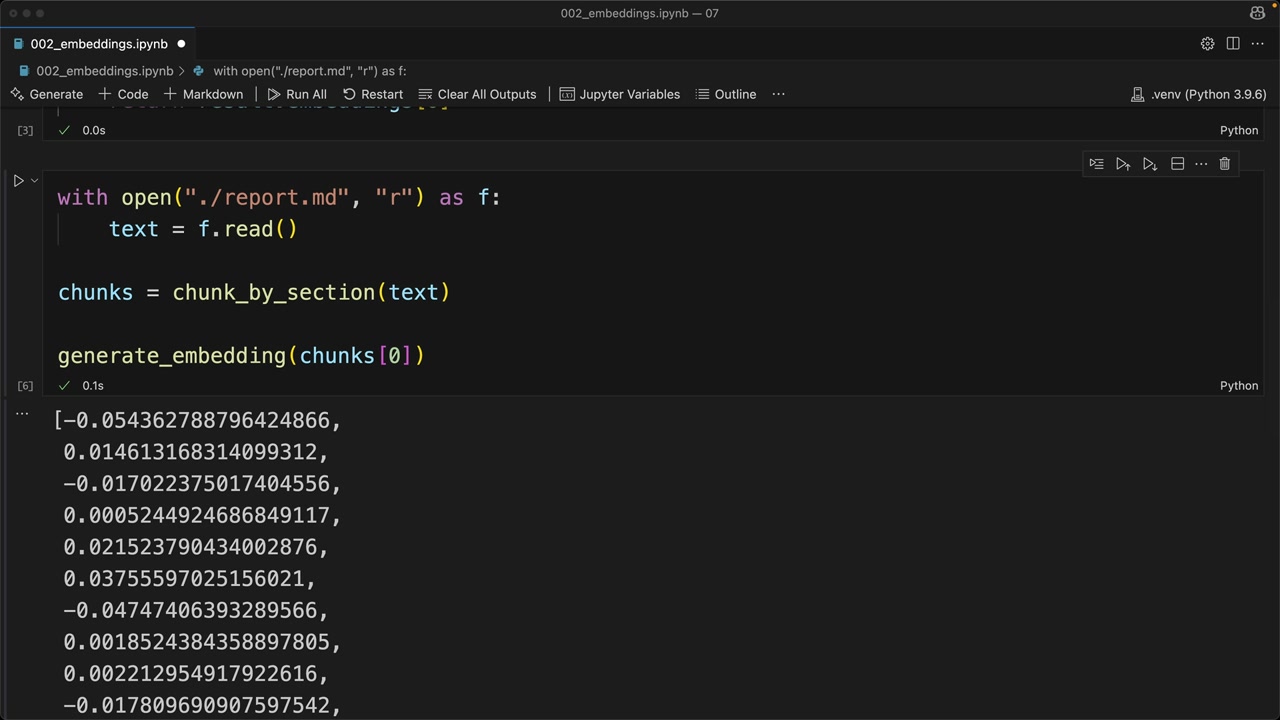

Notebook cell embedding the first chunk of report.md; the output is a long list of decimals starting -0.054, 0.015.

The next step is learning how to compare embeddings to determine which chunks are most similar to a user's question, which forms the core of the semantic search process.
